Drum Type Magnetic Separator

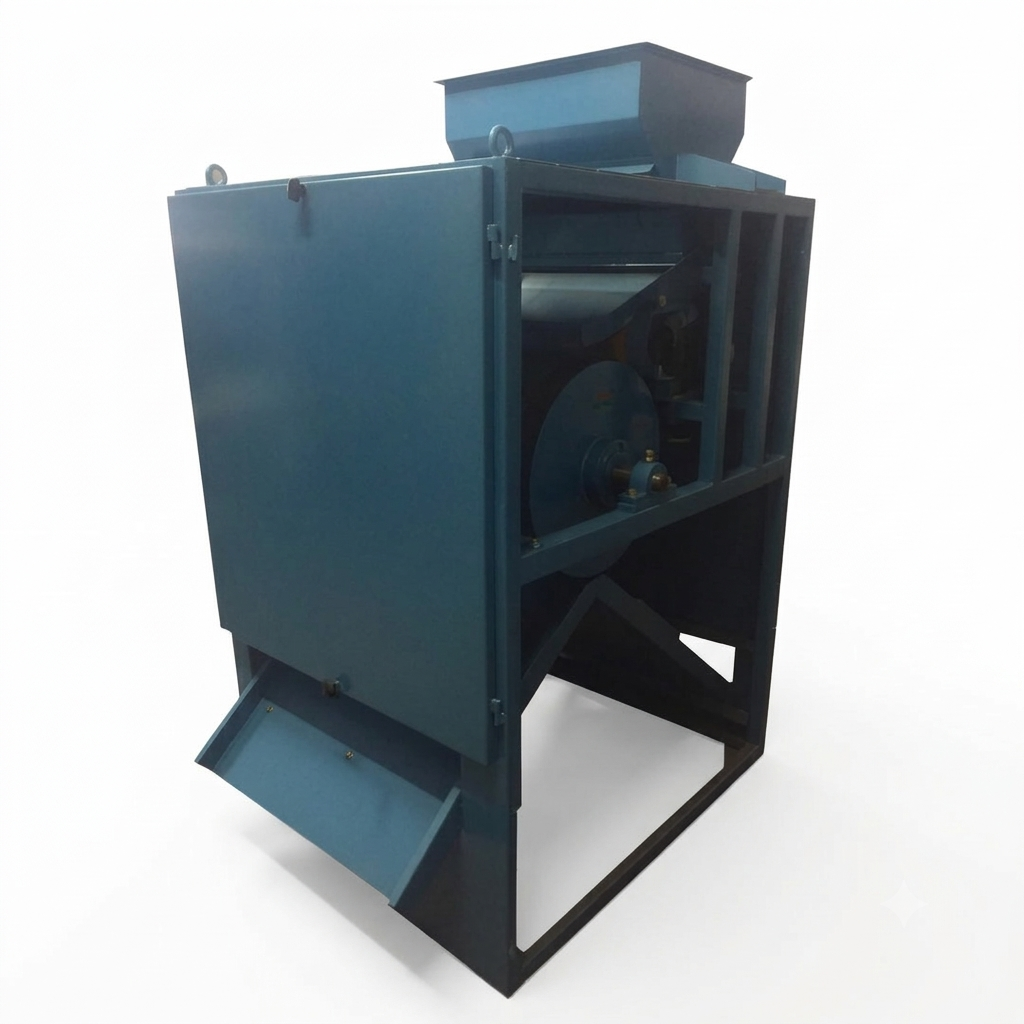

Single Drum Type Magnetic Separator :
Our Permanent Drum type separator which is most and widely used separating tramp iron from nonmagnetic material processed in large quantity, for the purity of end products, recovery of metal having commercial value and protection of processing plant and machinery. Single Drum Type Magnetic Separator is widely used in all the processing industry for separation of iron contamination from minerals ,chemicals, food, grains, sand, plastic fertilizers, slag,ores and in many more products.

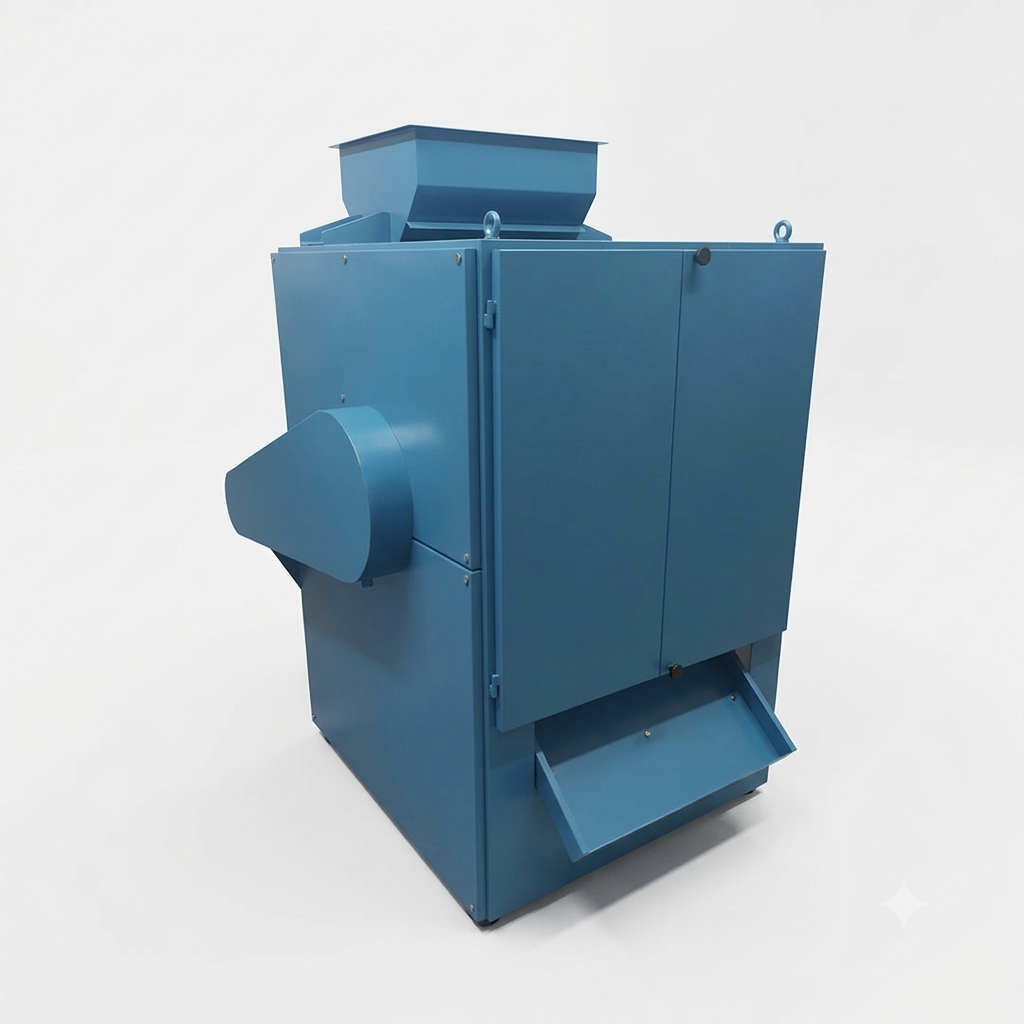

Double Drum Type Magnetic Separator :
Double Drum Type Magnetic Separators is mostly used for his functionality of highest purity. The material is going to pass through the magnet twice in Double Drum type machine. Mainly it is used for separation of iron contamination from Minerals, Chemicals, Refractory and many other products. In Double Drum Type Magnetic Separators high power permanent magnetic plate is provided at a material outlet. Modern an Isotropic Permanent Magnets are used having highest coercivity and everlasting magnetic strength. Machines are available with vibrating material inlet Hopper and totally enclosed design to avoid dusting and pollution. Online fitting design is also available as per requirement.

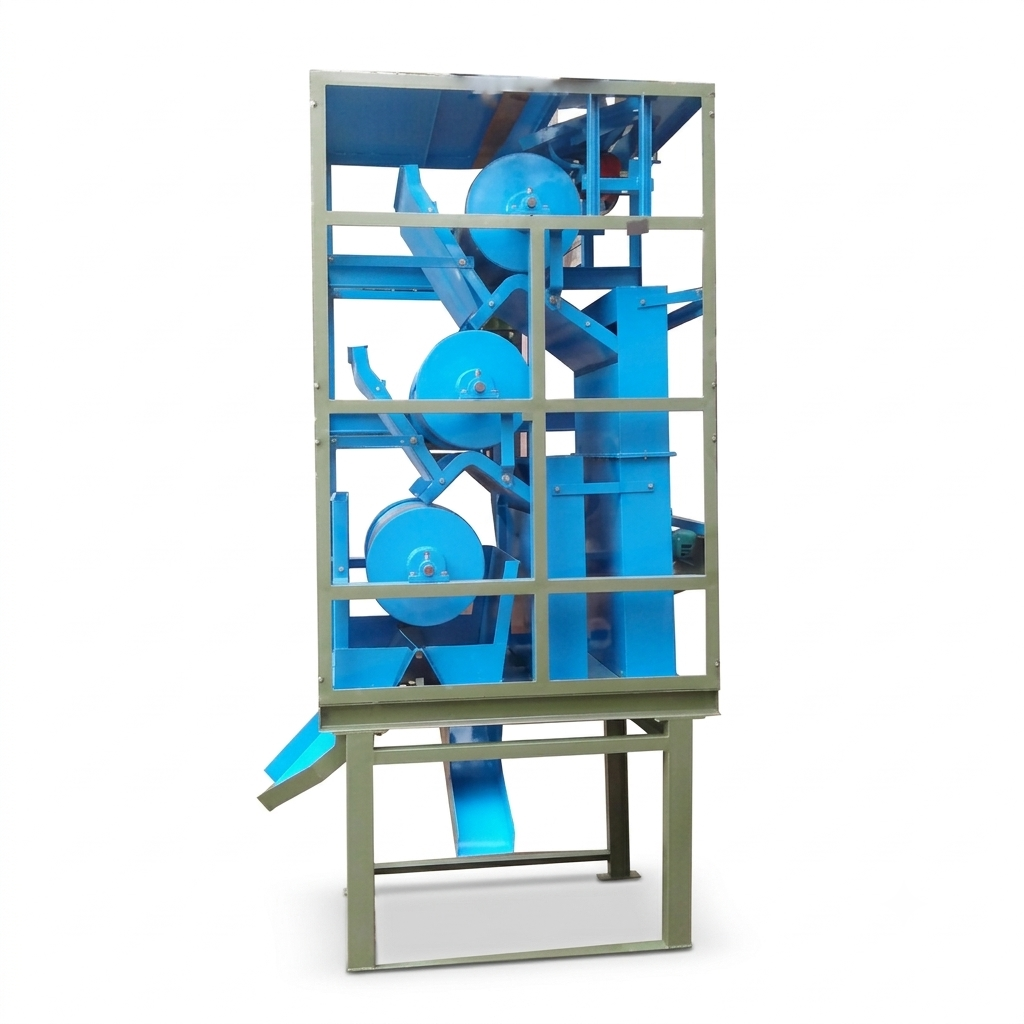

Triple Drum Magnetic Separator With Control Panel:
Salient Features:
Drum consists of high coercivity modern anisotropic permanent magnets.
Strong and rugged construction.
Automatic separation of iron impurities.
Completely enclosed design to avoid dusting and pollution.
Size Range :
Ther Permanent Drum Separators are available in standard drum diameters of 300mm, 400mm, 450mm, 500mm, 600mm, 900mm, 1200mm and Drum width range from 300mm to 2000mm. There are also many others sizes which can be made as per your requirement. The larger the diameter and width of the drum the greater is the volume of material which can be handled.|
Model no.
|
No. of Drums
|
Capacity tones per Hours
|
Drum Size
|
|
|---|---|---|---|---|
|
Dia mm
|
Length mm
|
|||
|
J-651-SDS
|
1
|
1.0
|
300
|
450
|
|
J-651-DDS
|
2
|
1.0
|
300
|
450
|
|
J-652-SDS
|
1
|
1.5
|
400
|
500
|
|
J-652-DDS
|
2
|
1.5
|
400
|
500
|
|
J-653-SDS
|
1
|
2.0
|
400
|
600
|
|
J-653-DDS
|
2
|
2.0
|
400
|
600
|
|
J-654-SDS
|
1
|
3.0
|
400
|
750
|
|
J-654-DDS
|
2
|
3.0
|
400
|
750
|
|
J-655-SDS
|
1
|
5.0
|
450
|
850
|
|
J-655-DDS
|
2
|
5.0
|
450
|
850
|
Magnetic Materials:
Magnetic separators are offered with two different types of magnets.
Ferrite Magnet:
Magnetic separators with ceramic magnets are useful for applications where free and larger iron particles need to be separated. The average magnetic intensity on the magnetic drum surface is 1500–2000 Gauss.
Rare Earth Magnet:
Magnetic separators with high-intensity Rare Earth Nd-Fe-B (Neodymium-Iron-Boron) magnets are useful for removing magnetic contamination with low magnetic properties and separating fine iron particles. The average magnetic intensity on the drum surface is 3500–5500 Gauss.
