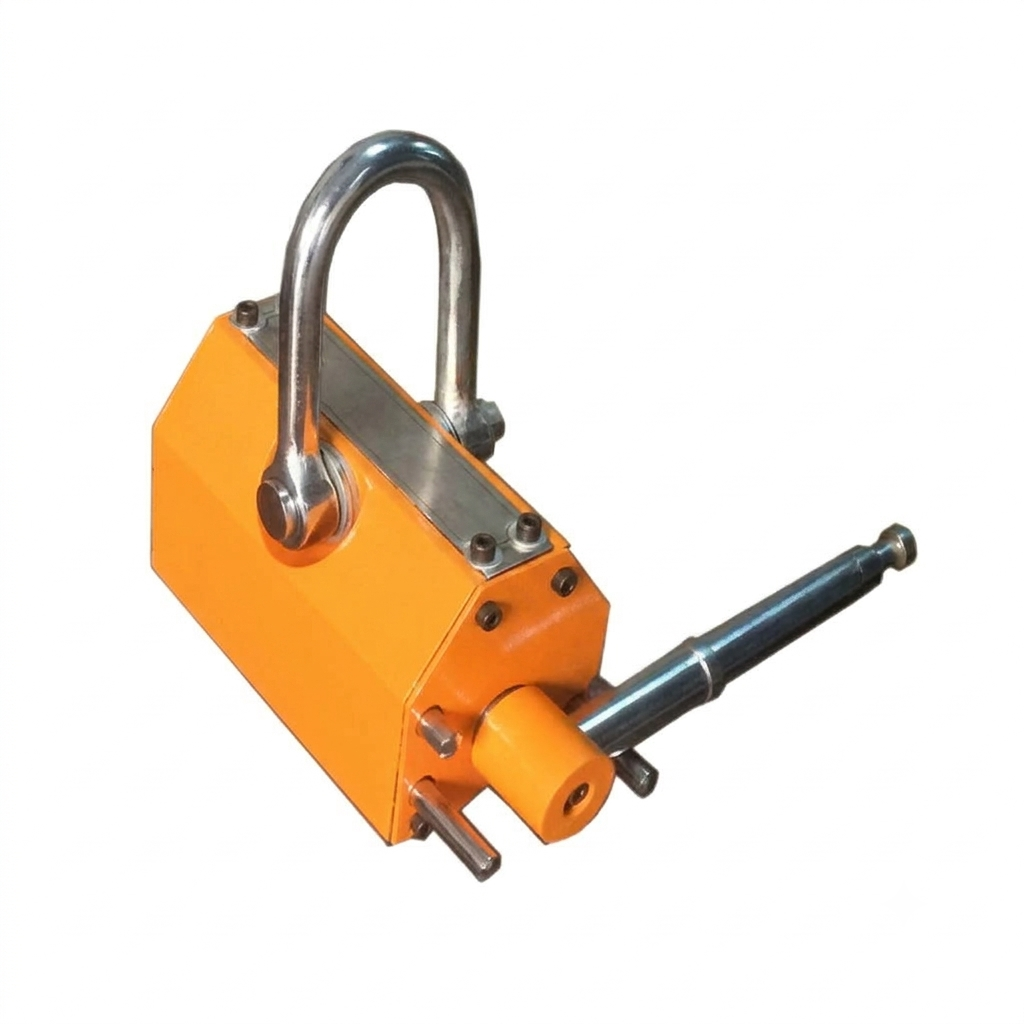

Permanent Magnetic Lifters
Our magnetic lifters have the magnetic path made by strong Nd-Fe-B magnetic material which supplies permanent power. There is no other safer, more efficient way to lift steel with magnets than with permanent magnetic lifters or permanent lifting magnets. Our permanent magnetic lifters are an ideal lifting equipment for factories, warehouses, docks and transportation.
Construction Diagram of Permanent Magnetic Lifters:
Specification:
PML consist of strong NdFeB magnets which provide magnetic flux for lifting
| MODEL | Rated Lifting Capacity (KG) | Cylindrical Lifting Strength (KG) | Operation Temperature (°C) |
|---|---|---|---|
| PML – 100 | 100 | 30 | <80 |
| PML – 300 | 300 | 150 | <80 |
| PML – 600 | 600 | 300 | <80 |
| PML – 1000 | 1000 | 500 | <80 |
| PML – 2000 | 2000 | 1000 | <80 |
| PML – 3000 | 3000 | 1500 | <80 |
| PML – 5000 | 5000 | 2500 | <80 |
Salient Features:
Eliminates dangerous straps and slings.
Zero electricity required.
Safe and lightweight.
No maintenance and operating cost.
